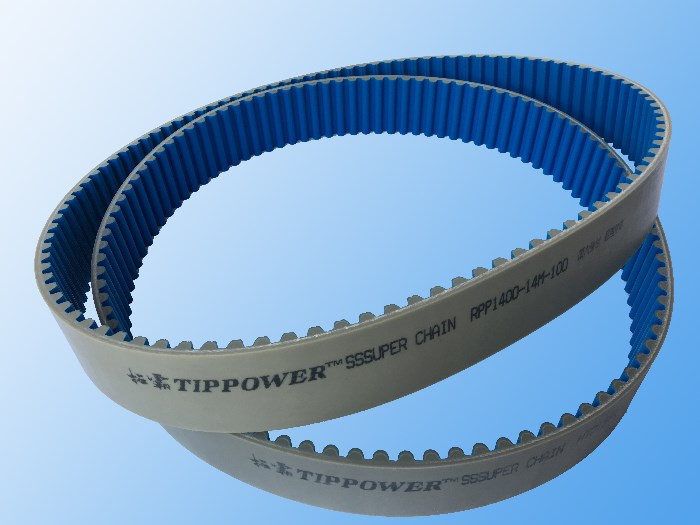

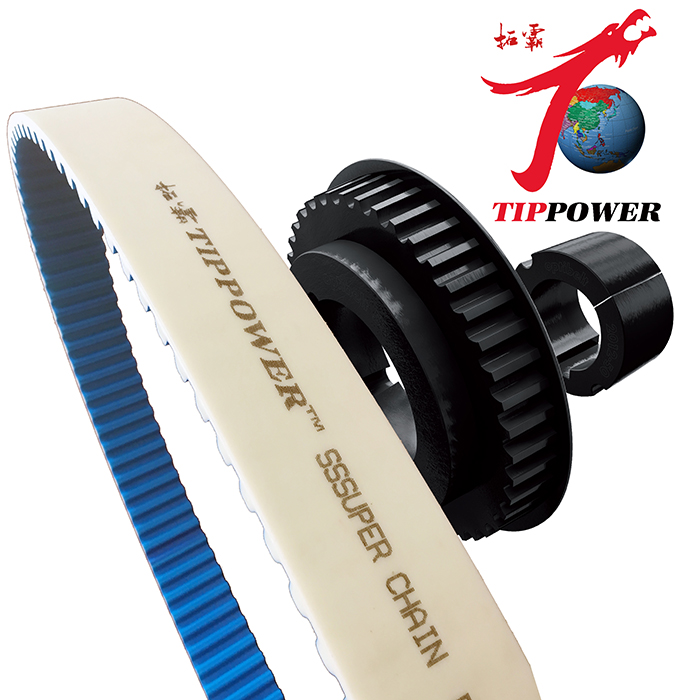

Super Chain timing belt
TIPPOWER SSSUPER CHAIN belt is the most strong power capacity heavy-duty timing belt for all extreme applications with extremely high torques,suitable for all industrial market. Also suitable as a replacement for chain drives. It provide a environmentally friendly, zero maintenance, energy saving operation. It does requires no lubrication or tensioning. Even at high transport speeds, the low noise levels provide a unique characteristic. Over the timing belt life, the timing belt tension is virtually constant,Compatible with back idler.It is N* stronger than any rubber timing belt.

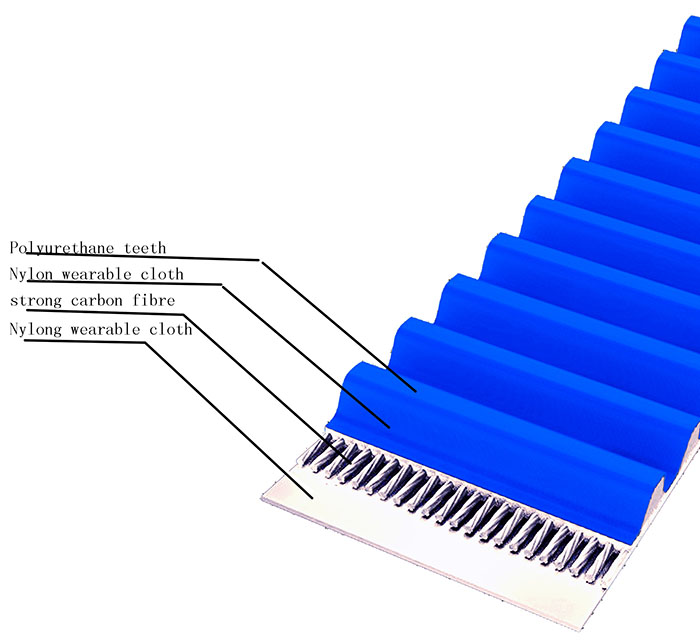

The construction consists of an elaboration tough and lightweight polyurethane compound. It is resistant face to chemist products and provides the best adhesion with carbon traction cords.White carbon fibre reinforcement brings a high potency and length constancy with improved shock load fatigue resistance and flexibility.The nylon fabric facing acts as a wear resistant surface and protecting teeth. It also keeps frictional losses to the minimum.
Features/Advantages
increased power ratings
reaction injection molding at high pressure ensure high-density
belt's both teeth and back are dip-faced with wear-resistant nylon fabric.
Nylon tooth facing reduces friction and eliminates the need for lubrication,greatly enhance the wear resistance and strength of tooth
Smooth back-side allows for the use of backside idlers with no added noise. Dip-faced fabric greatly enhances abrasion resistance
longitudinally stable throughout its lifetime
Maintenance-free, clean solution for roller chain drive conversion
Significantly reduces maintenance costs
Equivalent capacity to roller chain drives in the same width
Fast drive conversion payback
Quieter than roller chain drives
Robust customized tensile cord combines minimal stretch with extraordinary strength and load carrying capacity, while absorbing shock and surge loads.
Durable polyurethane construction resists chemicals, oil, pollutants, and abrasion.
ozone-resistant,aging-resistant,suitable for tropical climates
suited for counterbending / back-tensioners
Fully operational in temperature extremes
Available in the following pitches: 8 mm, 14 mm.
Also available in Long Length belting well suited for linear movement, positioning and conveying applications.
